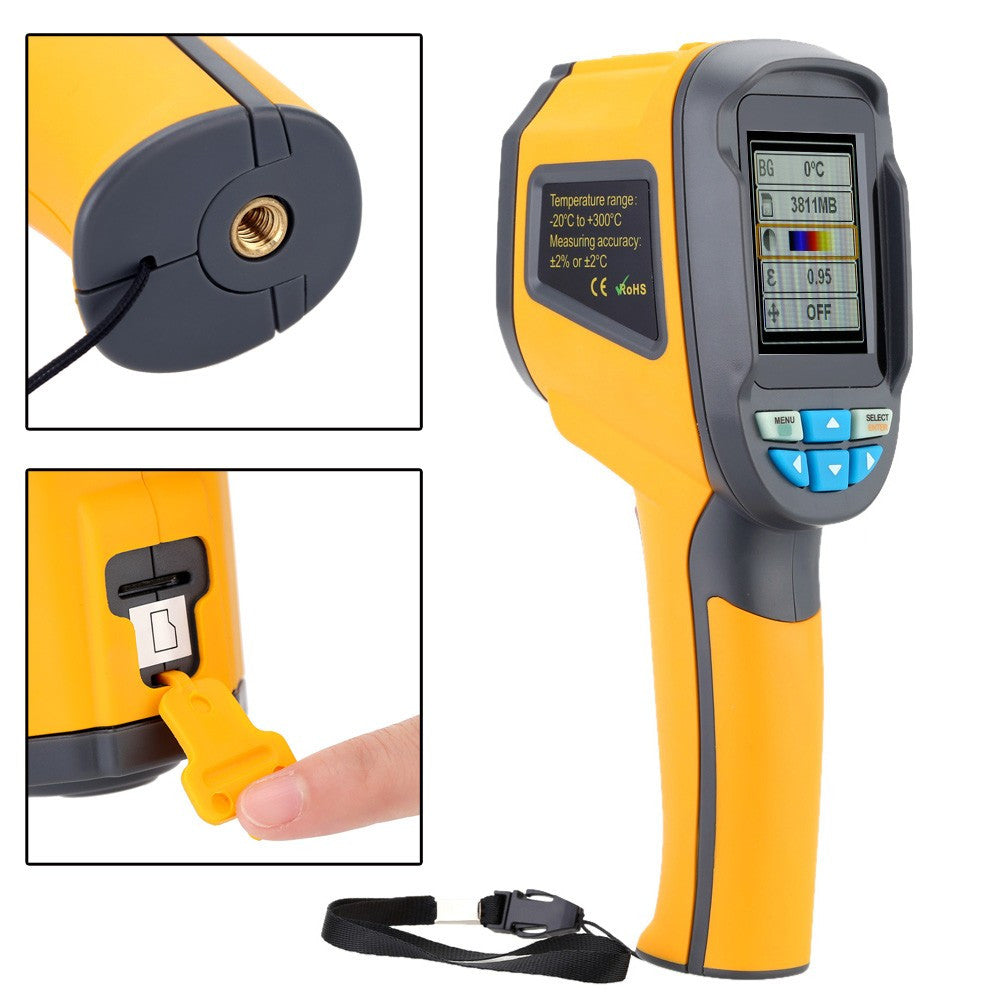

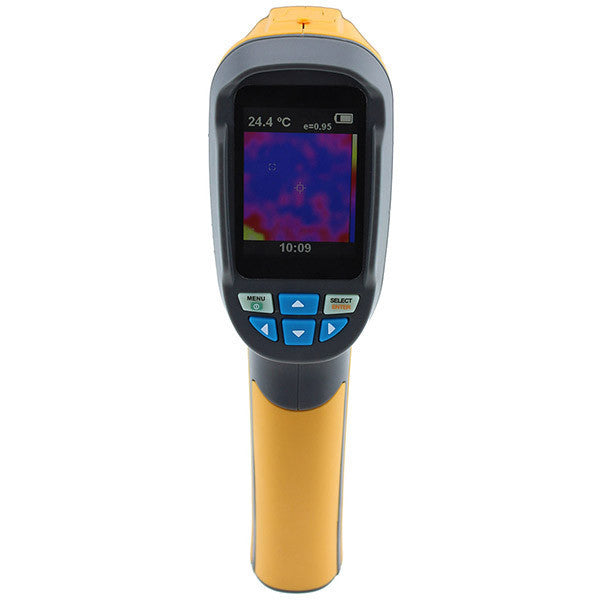

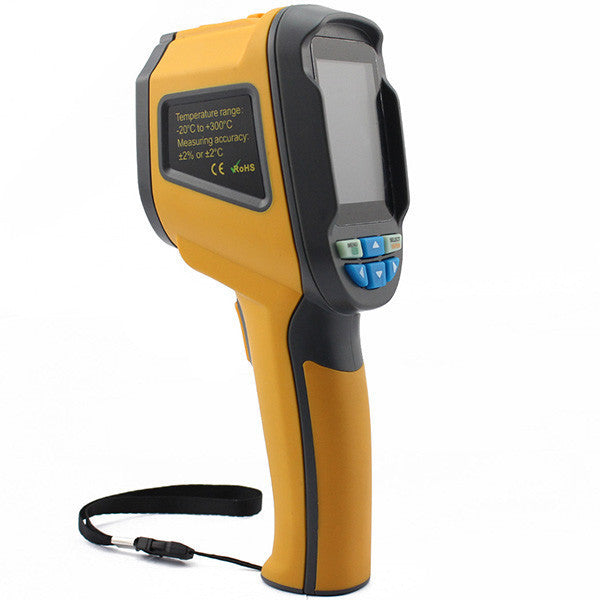

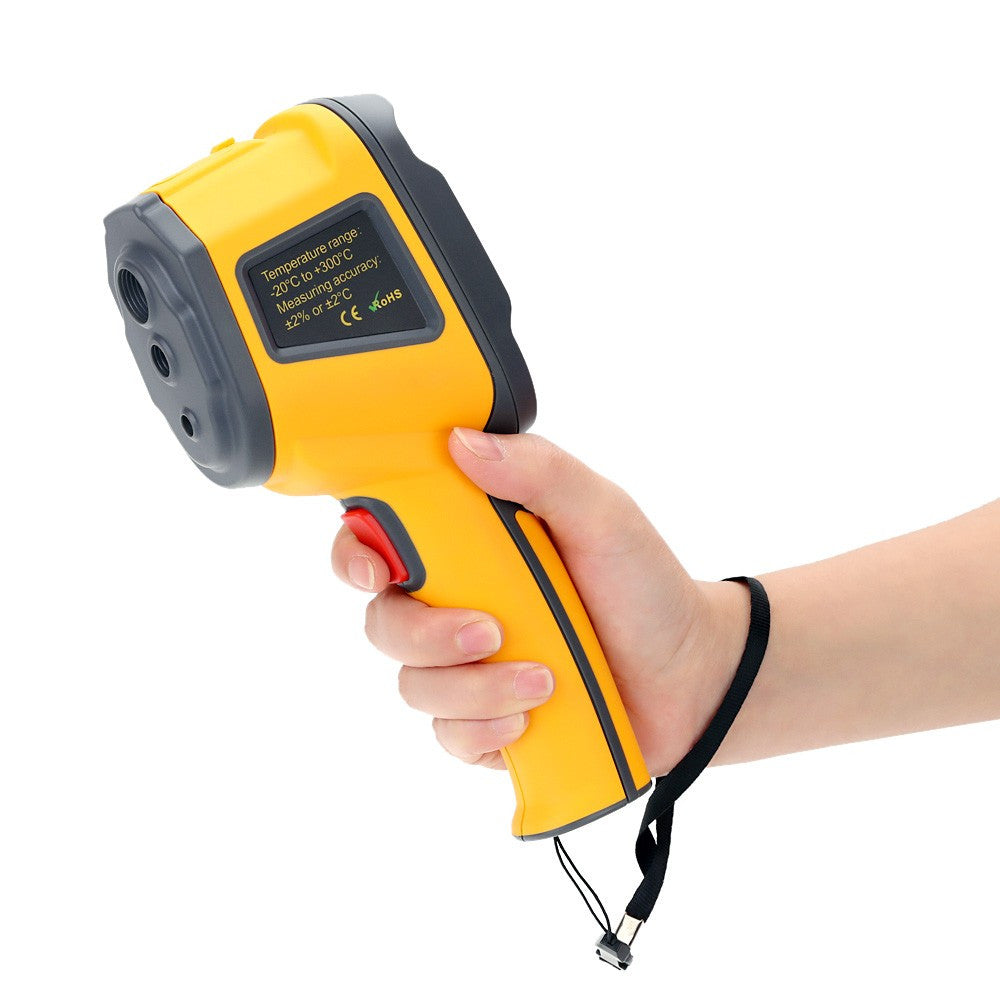

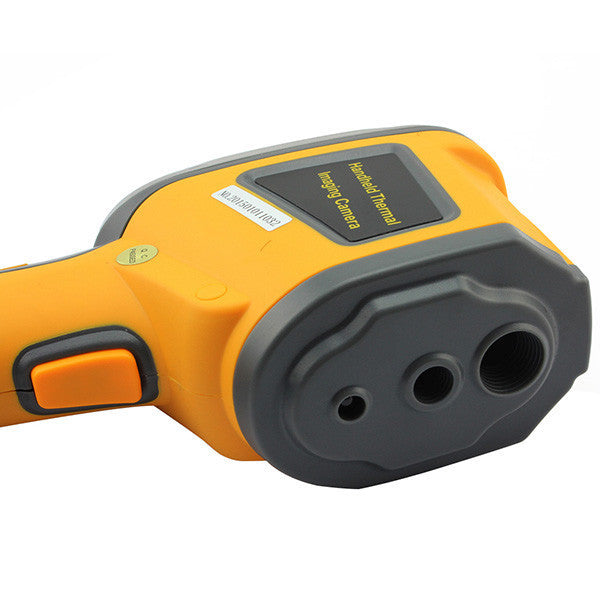

Handheld thermal imaging camera is widely used in the medical, archaeological, transport, agriculture and so on. This infrared thermal imager combines the functions of surface temperature and real-time thermal imaging.
Infrared thermal imager that can blend the visible and infrared images.
Resolution of infrared image/visible image: 3600 pixels/0.3 mega pixels.
This infrared imaging device is professional, precision and efficient.
For car engine overhaul, transformer room line maintenance, air conditioner repair, etc.
Our infrared thermal imager can turn thermal image into visional image, quickly find out the problem area.
Display: 2.4 inch full viewing angle high-resolution color screen
Resolution: 60 * 60
Resolution of visible image: 0.3 mega pixels.
Total Pixel: 3600
FOV/Shortest Focal Length: 20× 20/0.5m
Thermal Sensitivity: 0.5C
Measuring Mode: Thermopile
Temperature Range: -20C to 300C(-4F to 572F)
Measuring Accuracy: ±2% or ±2C(±4F)
Wavelength Range: 8-14μm
Emissivity: 0.1-1.0 Adjustable
Image Frequency: 6HZ
Focus Mode: Fixed
Palette: Iron red,rainbow,rainbow high contrast,gray scale(white glow) and gray scale(black glow)
Vision Option: 5 kinds of full infrared to the full visual, mixing visible and infrared.
Image Storage: SD card(4G)
File Format: bmp
Set Control: Unit Adjustment/Language/Date Time Format/automatic shut down
Battery Type: 4 * 1.5V AA battery (Not Included)
Battery Life: 6 Hours
Auto Power-off Time: 12 Minutes
Authentication: CE, RoHS
Operating Temperature: -5C to 40C (23F to 104F)
Storage Temperature: -20C to 50C (-4F to 122F)
Relative Humidity: 10%RH to 80%RH
Item Size: 21.2 * 9 * 6.2cm / 8.3 * 3.5 * 2.4in
Item Weight: 231.2g / 8.2oz
Package Size: 27 * 19 * 11cm / 10.6 * 7.5 * 4.3in
Package Weight: 927g / 32.7oz
1 * Thermal Infrared Imager
1 * SD Card(4G)
1 * User Manual
1 * Drop Resistance Rope
1 * Protection bag
